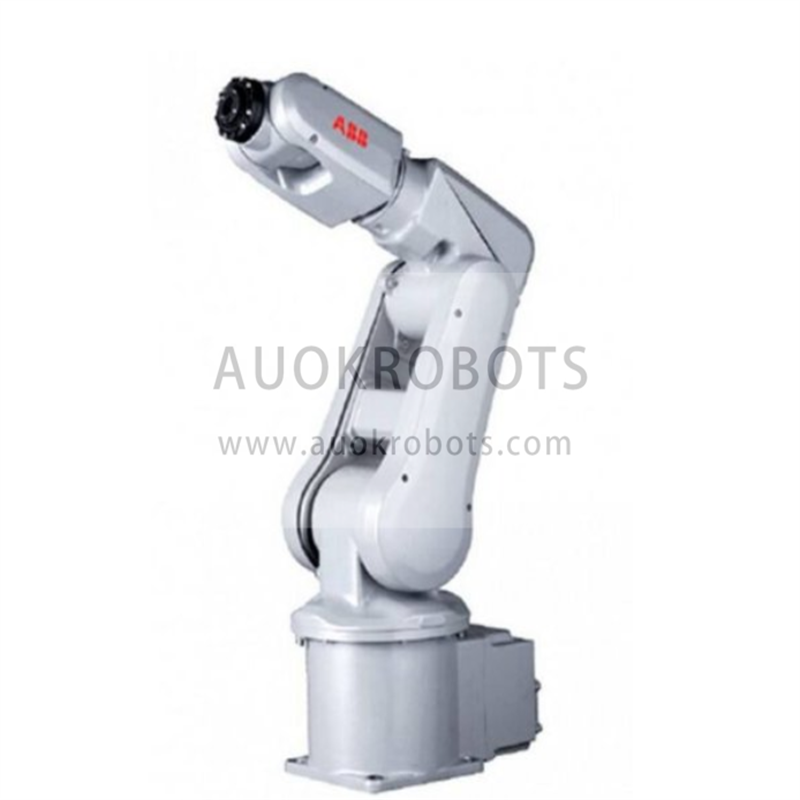

ABB IRB 1200 (5/0.9)
ABB IRB 1200 (5/0.9)
The IRB 1200 is designed 15% smaller and 10% shorter cycles which makes it faster has two variables, payload variant of 7 kg and reach 700 mm and payload variant 5 kg And range 900 mm, suitable for a variety of applications, IP40 protection as standard; Cleanroom, IP67 with options available Foundry Plus 2, is adaptable at any angle and offers a large work area usable on a compact surface.
Equipped with the latest IRC5 controller.
Main features | |
Variants 1/IRB 1200-7/0.7 | Variants 2/IRB 1200-5/0.9 |
Maximum Load of Robot: 7 kg | Maximum Load of Robot: 5 kg |
Maximum Reach: 700 mm | Maximum Reach: 900 mm |
Repeatability: 0.02 mm | Repeatability: 0.025 mm |
Controller: IRC5 Compact / IRC5 Single cabinet | Controller: IRC5 Compact / IRC5 Single cabinet |
Robot Motion Speed | |
Axis 1: 288°/s | Axis 1: 288°/s |
Axis 2: 240°/s | Axis 2: 240°/s |
Axis 3: 300°/s | Axis 3: 300°/s |
Axis 4: 400°/s | Axis 4: 400°/s |
Axis 5: 405°/s | Axis 5: 405°/s |
Axis 6: 600°/s | Axis 6: 600°/s |
Axis working range | |
Axis 1: +170° to -170° | Axis 1: +170° to -170° |
Axis 2: +135° to -100° | Axis 2: +130° to -100° |
Axis 3: +70° to -200° | Axis 3: +70° to -200° |
Axis 4: +270° to -270° | Axis 4: +270° to -270° |
Axis 5: +130° to -130° | Axis 5: +130° to -130° |
Axis 6: +360° to -360° | Axis 6: +360° to -360° |
